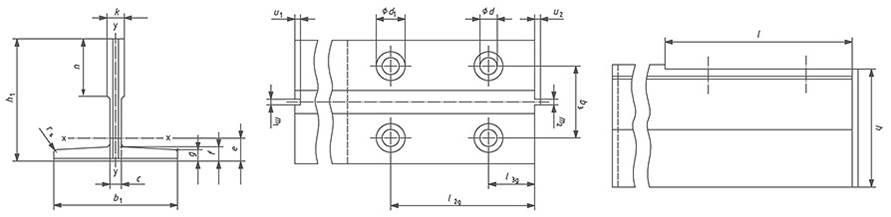

GAB01-01 机加工导轨
| 型号 |
b1 |
h1 |
h |
k |
n |
c |
f |
g |
rs |
m1 |
m2 |
u1 |
u2 |
d |
d1 |
b2 |
l2g |
l3g |
l |
h |
| 公差（标准） |
±1.5 |
±0.75 |
±0.1 |
+0.1/0 |
+3/0 |
- |
±0.75 |
±0.75 |
- |
+0.06/0 |
0/-0.06 |
±0.10 |
±0.10 |
- |
- |
±0.2 |
±0.2 |
±0.2 |
+3/0 |
±0.1 |
| T70-1/B |
70 |
65 |
64 |
9 |
34 |
6 |
8 |
6 |
1.5 |
3.00 |
2.97 |
3.5 |
3.00 |
13 |
26 |
42 |
105 |
25 |
128 |
64 |
| T75-3/B |
75 |
62 |
61 |
10 |
30 |
8 |
9 |
7 |
3 |
3.00 |
2.97 |
3.50 |
3.00 |
13 |
26 |
42 |
105 |
30 |
138 |
61 |
| T78/B |
78 |
56 |
55 |
10 |
26 |
7 |
8.5 |
6 |
2.5 |
3.00 |
2.97 |
3.50 |
3.00 |
13 |
26 |
42 |
105 |
38 |
138 |
55 |
| T82/B |
82 |
68.25 |
66.6 |
9 |
26 |
7.5 |
8.25 |
6 |
3 |
3.00 |
2.97 |
3.50 |
3.00 |
13 |
26 |
50.8 |
81 |
27 |
111 |
66.6 |
| T89/B |
89 |
62 |
61 |
16 |
34 |
10 |
11.1 |
7.9 |
3 |
6.40 |
6.37 |
7.14 |
6.35 |
13 |
26 |
57.2 |
114.3 |
38.1 |
156 |
61 |
| T90/B |
90 |
75 |
74 |
16 |
42 |
10 |
10 |
8 |
4 |
6.40 |
6.37 |
7.14 |
6.35 |
13 |
26 |
57.2 |
114.3 |
38.1 |
156 |
74 |
| T114/B |
114 |
89 |
88 |
16 |
38 |
9.5 |
11 |
8 |
4 |
6.40 |
6.37 |
7.14 |
6.35 |
17 |
33 |
70 |
114.3 |
38.1 |
156 |
88 |
| T127-1/B |
127 |
89 |
88 |
16 |
45 |
10 |
11 |
8 |
4 |
6.40 |
6.37 |
7.14 |
6.35 |
17 |
33 |
79.4 |
114.3 |
38.1 |
156 |
88 |
| T127-2/B |
127 |
89 |
88 |
16 |
51 |
10 |
15.9 |
12.7 |
5 |
6.40 |
6.37 |
7.14 |
6.35 |
17 |
33 |
79.4 |
114.3 |
38.1 |
156 |
88 |
| T140-1/B |
140 |
108 |
107 |
19 |
51 |
12.7 |
15.9 |
12.7 |
5 |
6.40 |
6.37 |
7.14 |
6.35 |
21 |
40 |
92.1 |
152.4 |
31.8 |
193 |
107 |
| T140-2/B |
140 |
102 |
101 |
28.6 |
51 |
17.5 |
17.5 |
14.5 |
5 |
6.40 |
6.37 |
7.14 |
6.35 |
21 |
40 |
92.1 |
152.4 |
31.8 |
193 |
101 |
| T140-3/B |
140 |
127 |
126 |
31.75 |
57 |
19 |
25.4 |
17.5 |
5 |
6.40 |
6.37 |
7.14 |
6.35 |
21 |
40 |
92.1 |
152.4 |
31.8 |
193 |
126 |
