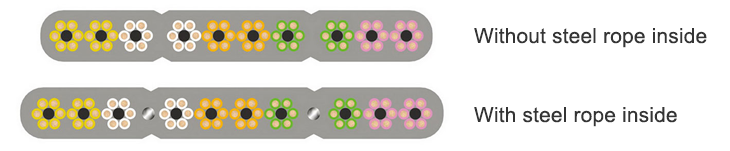

GAB02-02TVB TVBG电梯扁平PVC控制电缆
| 型号 |
导线截面(mm2) |
导体结构(mm2) |
产品直径(mm) |
70℃绝缘电阻器(MΩ·KM) |
20℃导体直流电阻器(Ω/KM) |
| TVVB |
8X0.75 |
30/0.18 |
22.2X4.5 |
≥0.011 |
≤26.0 |
| TVVB |
20X0.75 |
30/0.18 |
29.9X9.0 |
≥0.011 |
≤26.0 |
| TVVB |
24X0.75 |
30/0.18 |
30.5X9.1 |
≥0.011 |
≤26.0 |
| TVVB |
28X0.75+4X2 |
30/0.18+37/0.26 |
46.0X10.0 |
≥0.011/0.010 |
≤26.0/10.2 |
| TVVB |
20X0.75+(2X2)X0.75 |
30/0.18 |
44.2X9.1 |
≥0.011 |
≤26.0 |
| TVVB |
36X0.75+(2X2)X0.75 |
30/0.18 |
62X10.0 |
≥0.011 |
≤26.0 |
| TVVB |
48X0.75+(2X2)X0.75 |
30/0.18 |
68.5X10.0 |
≥0.011 |
≤26.0 |
| TVVB |
30X0.75 |
30/0.18 |
44.2X9.1 |
≥0.011 |
≤26.0 |
| TVVB |
36X0.75 |
30/0.18 |
42.5X9.0 |
≥0.011 |
≤26.0 |
| TVVB |
40X0.75 |
30/0.18 |
52.5X9.0 |
≥0.011 |
≤26.0 |
| TVVB |
42X0.75 |
30/0.18 |
54.1X9.7 |
≥0.011 |
≤26.0 |
| TVVB |
48X0.75 |
30/0.18 |
58.0X9.6 |
≥0.011 |
≤26.0 |
| TVVBG |
2X1.0+TV(SYV75-4) |
7/0.24+50/0.16 |
15.8X7.6 |
≥0.010 |
≤19.5 |
| TVVBG |
20X0.75+4X2 |
30/0.18+37/0.26 |
50.3X9.7 |
≥0.011/0.010 |
≤26.0/10.2 |
| TVVBG |
28X0.75+4X2 |
30/0.18+37/0.26 |
54.0X9.5 |
≥0.011/0.010 |
≤26.0/10.2 |
| TVVBG |
30X0.75 |
30/0.18 |
53X8.6 |
≥0.011 |
≤26.0 |
| TVVBG |
36X0.75 |
30/0.18 |
54.0X9.5 |
≥0.011 |
≤26.0 |
| TVVBG |
40X0.75 |
30/0.18 |
58X8.2 |
≥0.011 |
≤26.0 |
| TVVBG |
42X0.75 |
30/0.18 |
66.6X9.7 |
≥0.011 |
≤26.0 |
| TVVBG |
48X0.75 |
30/0.18 |
67.2X9.5 |
≥0.011 |
≤26.0 |
