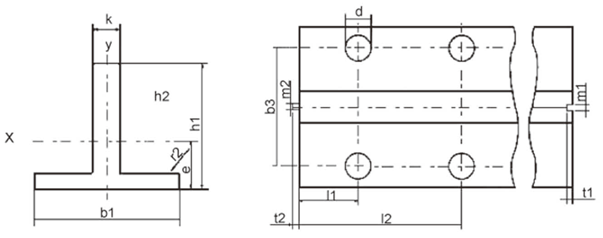

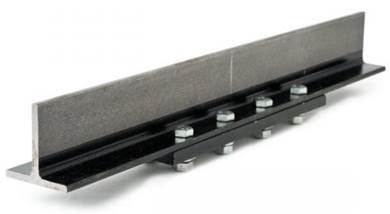

| 型号 | b1 | h1 | k | p | rs | m1 | m2 | t1 | t2 | L1 | L2 | b3 | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 公差 | ±0.5 | ±0.2 | +0.15 | ±0.5 | - | +0.06/0 | 0/-0.06 | ±0.1 | ±0.1 | ±0.2 | ±0.2 | ±3.2 | |
| T45/A | 45 | 45 | 5 | 5 | 1 | 2 | 1.95 | 2.5 | 2 | 65 | 15 | 25 | 9 |
| T50/A | 50 | 50 | 5 | 5 | 1 | 2 | 1.95 | 2.5 | 2 | 75 | 25 | 30 | 9 |
| T70/A | 70 | 65 | 9 | 1.5 | 3 | 2.95 | 3.5 | 3 | 105 | 25 | 42 | 13 |
| 型号 | b1 | h1 | k | p | rs | m1 | m2 | t1 | t2 | L1 | L2 | b3 | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 公差 | ±0.5 | ±0.2 | +0.15 | ±0.5 | - | +0.06/0 | 0/-0.06 | ±0.1 | ±0.1 | ±0.2 | ±0.2 | ±3.2 | |
| T45/A | 45 | 45 | 5 | 5 | 1 | 2 | 1.95 | 2.5 | 2 | 65 | 15 | 25 | 9 |
| T50/A | 50 | 50 | 5 | 5 | 1 | 2 | 1.95 | 2.5 | 2 | 75 | 25 | 30 | 9 |
| T70/A | 70 | 65 | 9 | 1.5 | 3 | 2.95 | 3.5 | 3 | 105 | 25 | 42 | 13 |
